Connection Collar Size Sheet

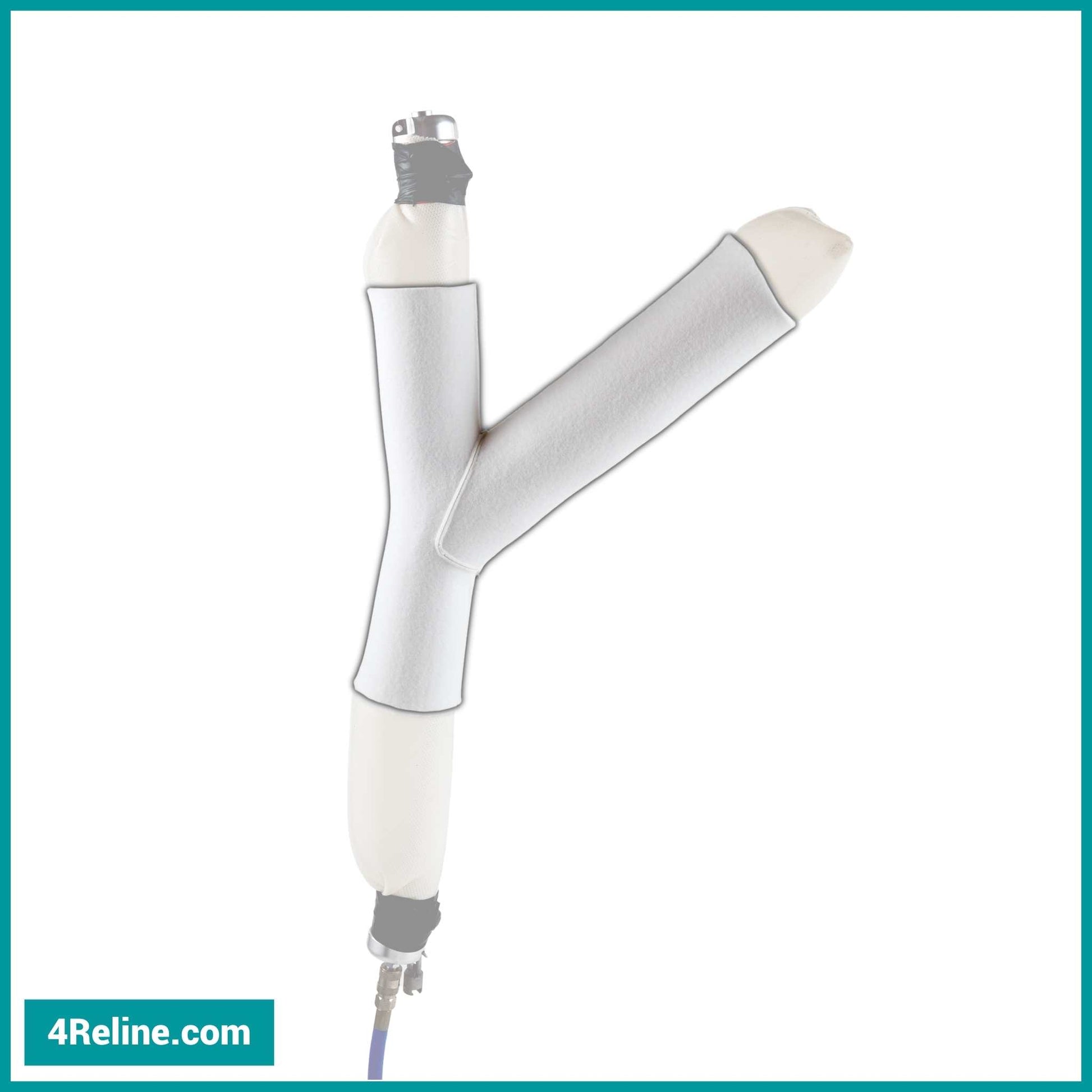

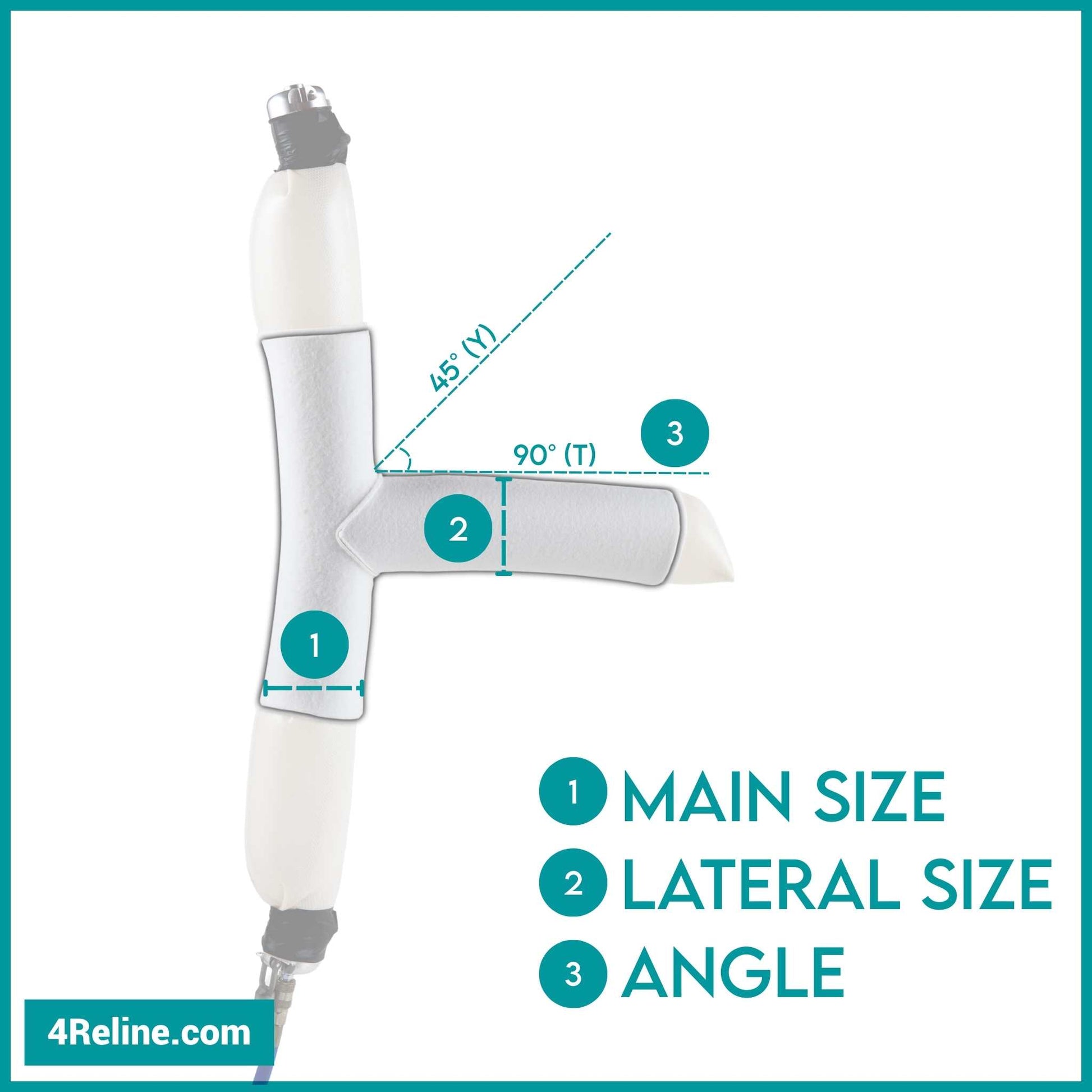

Connection Liners 45° (Y) Metric

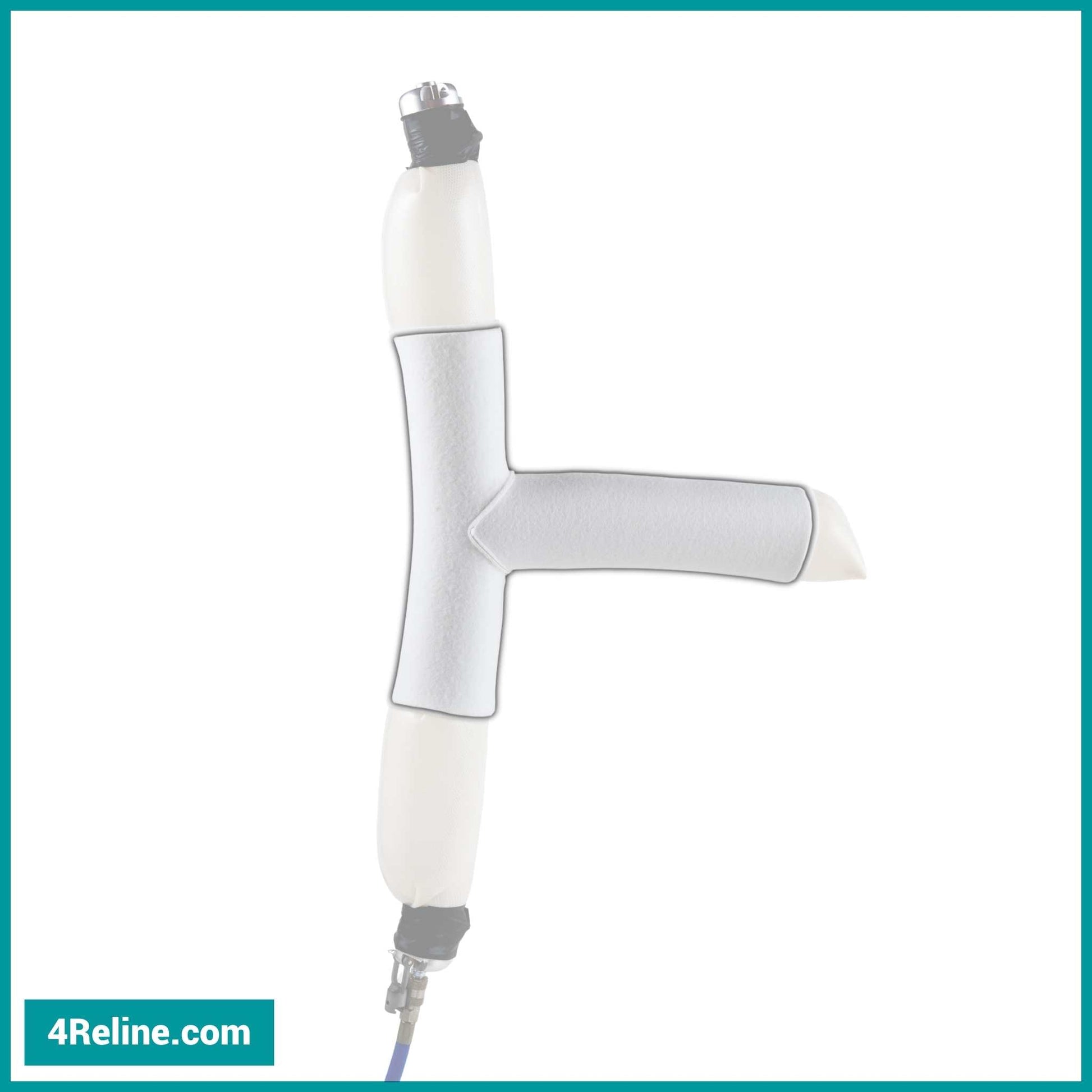

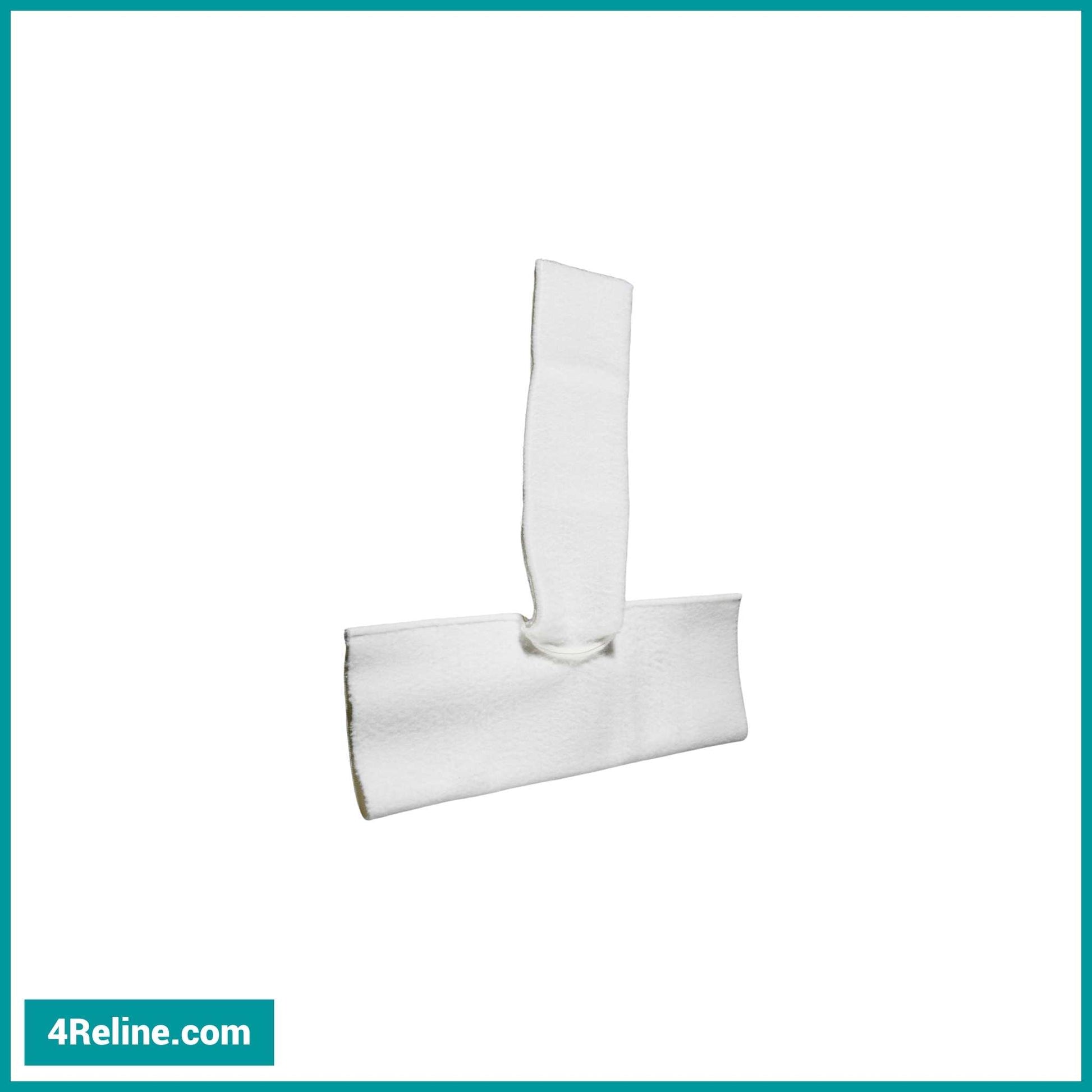

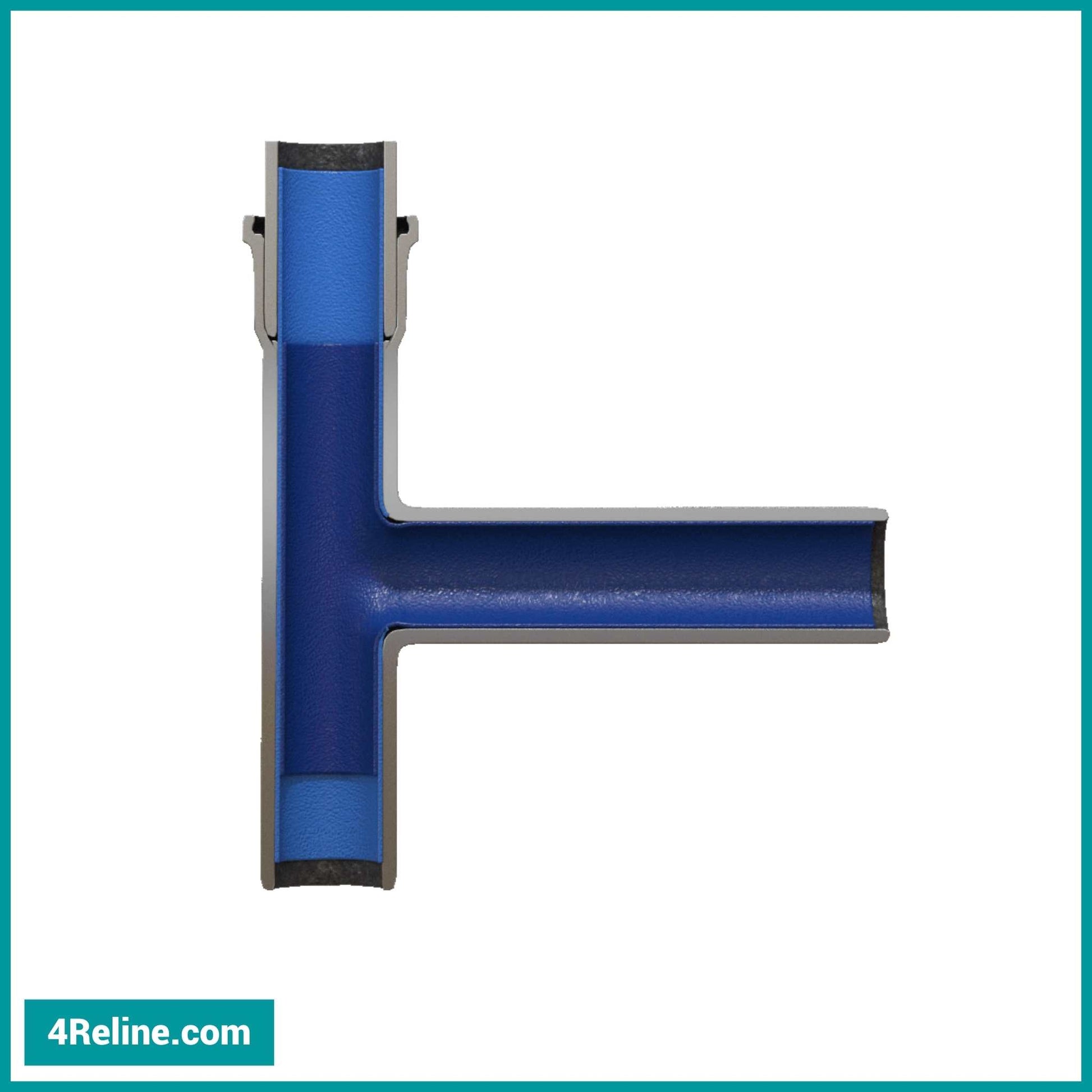

Connection Liners 90° (T) Metric
Connection Liners Y (Imperial)
Connection Liners T (Imperial)

Connection Liner 45° (Y) Size Sheet

Model	Lateral Length	Main Length
50-50-45	300 mm	360 mm
70-50-45	300 mm	360 mm
70-70-45	300 mm	370 mm
100-50-45	300 mm	360 mm
100-70-45	300 mm	370 mm
100-100-45	300 mm	410 mm
125-50-45	300 mm	350 mm
125-70-45	300 mm	370 mm
125-100-45	300 mm	410 mm
125-125-45	300 mm	420 mm
150-50-45	300 mm	360 mm
150-70-45	300 mm	380 mm
150-100-45	300 mm	410 mm
150-125-45	300 mm	420 mm
150-150-45	300 mm	470 mm
200-50-45	300 mm	360 mm
200-70-45	300 mm	380 mm
200-100-45	300 mm	410 mm
200-125-45	300 mm	420 mm
200-150-45	300 mm	470 mm
200-200-45	300 mm	530 mm
225-50-45	300 mm	350 mm
225-70-45	300 mm	380 mm
225-100-45	300 mm	410 mm
225-125-45	300 mm	420 mm
225-150-45	300 mm	470 mm
225-200-45	300 mm	530 mm
225-225-45	300 mm	550 mm
250-50-45	300 mm	360 mm
250-70-45	300 mm	380 mm
250-100-45	300 mm	410 mm
250-125-45	300 mm	420 mm
250-150-45	300 mm	470 mm
250-200-45	300 mm	530 mm
250-225-45	300 mm	550 mm
250-250-45	300 mm	570 mm
300-100-45	300 mm	410 mm
300-150-45	300 mm	470 mm
300-200-45	300 mm	530 mm
300-225-45	300 mm	550 mm
300-300-45	300 mm	600 mm

Connection Liner 90° (T) Size Sheet

Model	Lateral Length	Main Length
50-50-90	300 mm	340 mm
70-50-90	300 mm	340 mm
70-70-90	300 mm	350 mm
100-50-90	300 mm	340 mm
100-70-90	300 mm	350 mm
100-100-90	300 mm	380 mm
125-50-90	300 mm	330 mm
125-70-90	300 mm	350 mm
125-100-90	300 mm	380 mm
125-125-90	300 mm	400 mm
150-50-90	300 mm	340 mm
150-70-90	300 mm	350 mm
150-100-90	300 mm	380 mm
150-125-90	300 mm	400 mm
150-150-90	300 mm	420 mm
200-50-90	300 mm	340 mm
200-70-90	300 mm	350 mm
200-100-90	300 mm	380 mm
200-125-90	300 mm	400 mm
200-150-90	300 mm	420 mm
200-200-90	300 mm	460 mm
225-50-90	300 mm	330 mm
225-70-90	300 mm	350 mm
225-100-90	300 mm	380 mm
225-125-90	300 mm	400 mm
225-150-90	300 mm	420 mm
225-200-90	300 mm	460 mm
225-225-90	300 mm	470 mm
250-50-90	300 mm	340 mm
250-70-90	300 mm	350 mm
250-100-90	300 mm	380 mm
250-125-90	300 mm	400 mm
250-150-90	300 mm	420 mm
250-200-90	300 mm	460 mm
250-225-90	300 mm	470 mm
250-250-90	300 mm	490 mm
300-100-90	300 mm	380 mm
300-150-90	300 mm	420 mm
300-200-90	300 mm	460 mm
300-225-90	300 mm	470 mm
300-300-90	300 mm	510 mm

Connection Liner Y (Imperial) Size Sheet

Model	Lateral Length	Main Length
2″-2″-Y	12″	14″
3″-2″-Y	12″	14″
3″-3″-Y	12″	15″
4″-2″-Y	12″	14″
4″-3″-Y	12″	15″
4″-4″-Y	12″	16″
5″-2″-Y	12″	14″
5″-3″-Y	12″	15″
5″-4″-Y	12″	16″
5″-5″-Y	12″	17″
6″-2″-Y	12″	14″
6″-3″-Y	12″	15″
6″-4″-Y	12″	16″
6″-5″-Y	12″	17″
6″-6″-Y	12″	19″
8″-2″-Y	12″	14″
8″-3″-Y	12″	15″
8″-4″-Y	12″	16″
8″-5″-Y	12″	17″
8″-6″-Y	12″	19″
8″-8″-Y	12″	21″
9″-2″-Y	12″	14″
9″-3″-Y	12″	15″
9″-4″-Y	12″	16″
9″-5″-Y	12″	17″
9″-6″-Y	12″	19″
9″-8″-Y	12″	21″
9″-9″-Y	12″	22″
10″-2″-Y	12″	14″
10″-3″-Y	12″	15″
10″-4″-Y	12″	16″
10″-5″-Y	12″	17″
10″-6″-Y	12″	19″
10″-8″-Y	12″	21″
10″-9″-Y	12″	22″
10″-10″-Y	12″	22″
12″-4″-Y	12″	16″
12″-6″-Y	12″	19″
12″-8″-Y	12″	21″
12″-9″-Y	12″	22″
12″-12″-Y	12″	24″

Connection Liner T (Imperial) Size Sheet

Model	Lateral Length	Main Length
2″-2″-T	12″	13″
3″-2″-T	12″	13″
3″-3″-T	12″	14″
4″-2″-T	12″	13″
4″-3″-T	12″	14″
4″-4″-T	12″	15″
5″-2″-T	12″	13″
5″-3″-T	12″	14″
5″-4″-T	12″	15″
5″-5″-T	12″	16″
6″-2″-T	12″	13″
6″-3″-T	12″	14″
6″-4″-T	12″	15″
6″-5″-T	12″	16″
6″-6″-T	12″	17″
8″-2″-T	12″	13″
8″-3″-T	12″	14″
8″-4″-T	12″	15″
8″-5″-T	12″	16″
8″-6″-T	12″	17″
8″-8″-T	12″	18″
9″-2″-T	12″	13″
9″-3″-T	12″	14″
9″-4″-T	12″	15″
9″-5″-T	12″	16″
9″-6″-T	12″	17″
9″-8″-T	12″	18″
9″-9″-T	12″	19″
10″-2″-T	12″	13″
10″-3″-T	12″	14″
10″-4″-T	12″	15″
10″-5″-T	12″	16″
10″-6″-T	12″	17″
10″-8″-T	12″	18″
10″-9″-T	12″	19″
10″-10″-T	12″	19″
12″-4″-T	12″	15″
12″-6″-T	12″	17″
12″-8″-T	12″	18″
12″-9″-T	12″	19″
12″-12″-T	12″	20″
