Drill Headed X-Tip Chain
Drill Headed X-Tip Chain
SKU:PX0-050-006-035-X1
Couldn't load pickup availability

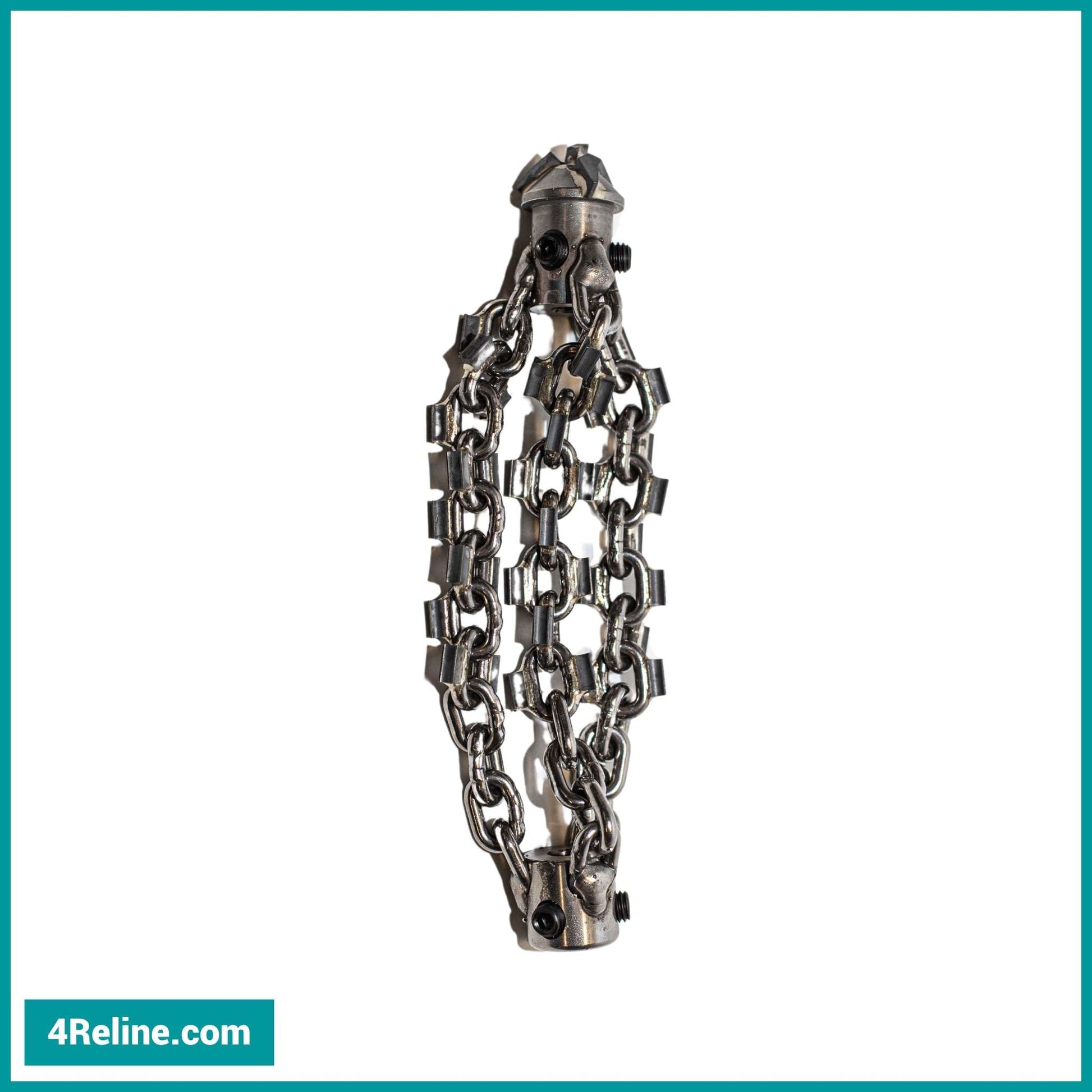

The Drill Headed X-Tip Chain combines an aggressive X-tip cleaning chain with a forward-cutting drill head for removing tough blockages in metal and ceramic pipes. It is available in two chain types: Light and Heavy, depending on your shaft size and power source.
At the front of the tool is a crown-shaped drill head with forward-facing alloy teeth. This design increases cutting strength when pushing through roots, failed liners, or other hard obstructions. The drill head is angled to help it pass through bends, but be careful since it is very aggressive and can damage the pipe wall if not kept moving.
The tool uses centrifugal force to center itself during rotation, cleaning the full pipe diameter. It mounts to a flexible shaft with hex screws and includes three stainless steel chains for wider cleaning coverage. The chain spacing can be adjusted to fit smaller pipes within the supported range.
| Feature | Light Chain Type | Heavy Chain Type |
|---|---|---|
| Shaft compatibility | 6mm (1/4″), 8mm (5/16″), 10mm (3/8″), 12mm (1/2″) | 8mm (5/16″), 10mm (3/8″), 12mm (1/2″) |
| Chain thickness | Thinner, requires less torque | 4mm (3/16″), more weight, more cutting power |
| Pipe size range | 50mm (2″) | 75–200mm (3″–8″) |
| Recommended shaft | 8mm (5/16″) or smaller tools | 10mm (3/8″) and 12mm (1/2″) for better torque |
| Best for | Light blockages, soft roots, pipe prep | Tough roots, liner removal, thick rust, tuberculation |
| PVC use | Not recommended | Not recommended |
