Inversion Drum Sanidrum 700
Inversion Drum Sanidrum 700
SKU:1204600
Couldn't load pickup availability

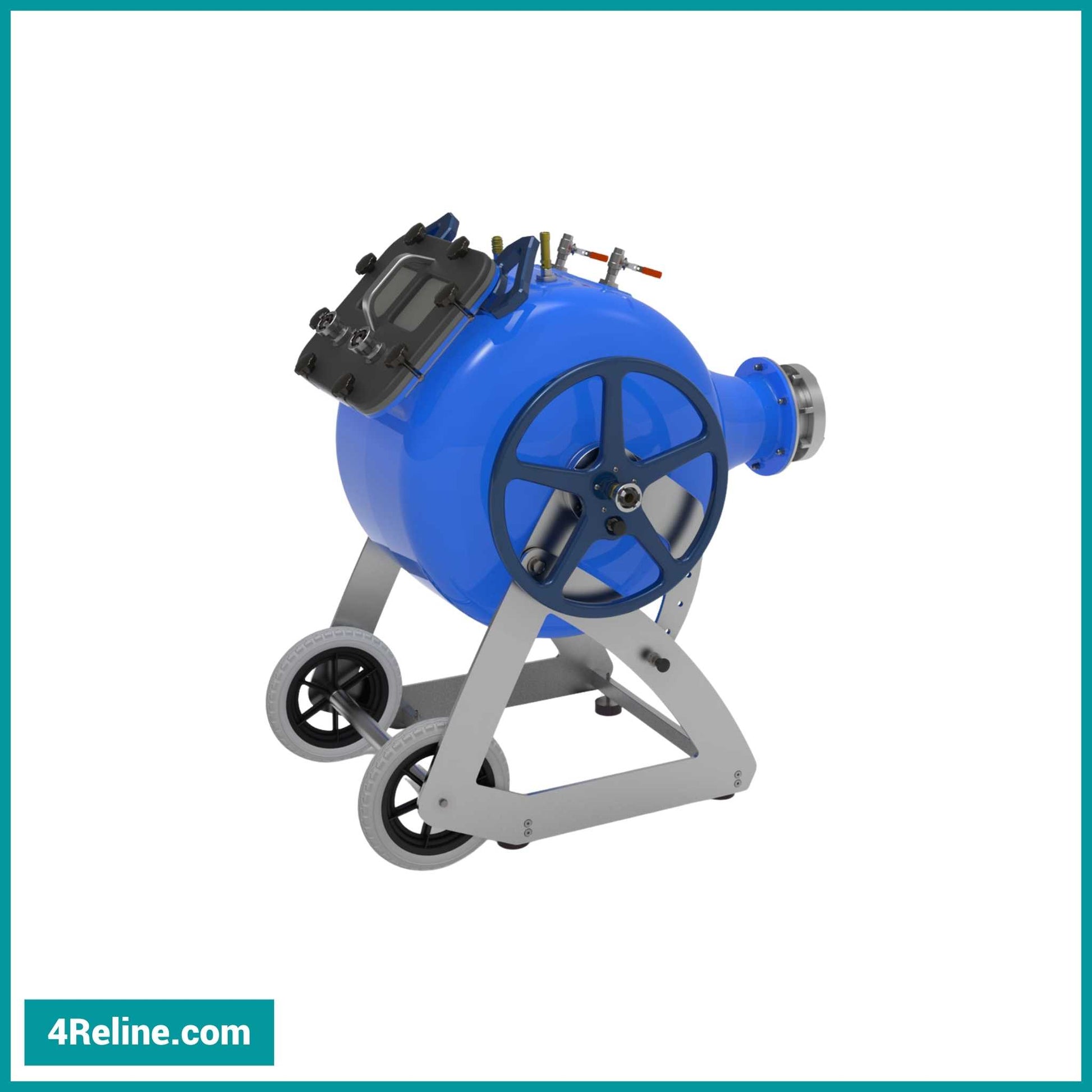

The Sanidrum 700 is a compact and lightweight inversion drum designed for efficient CIPP liner installation. Built from composite material, it offers resistance to high temperatures, corrosion, and mechanical wear making it a durable choice for job sites where steam curing or extended use is required.

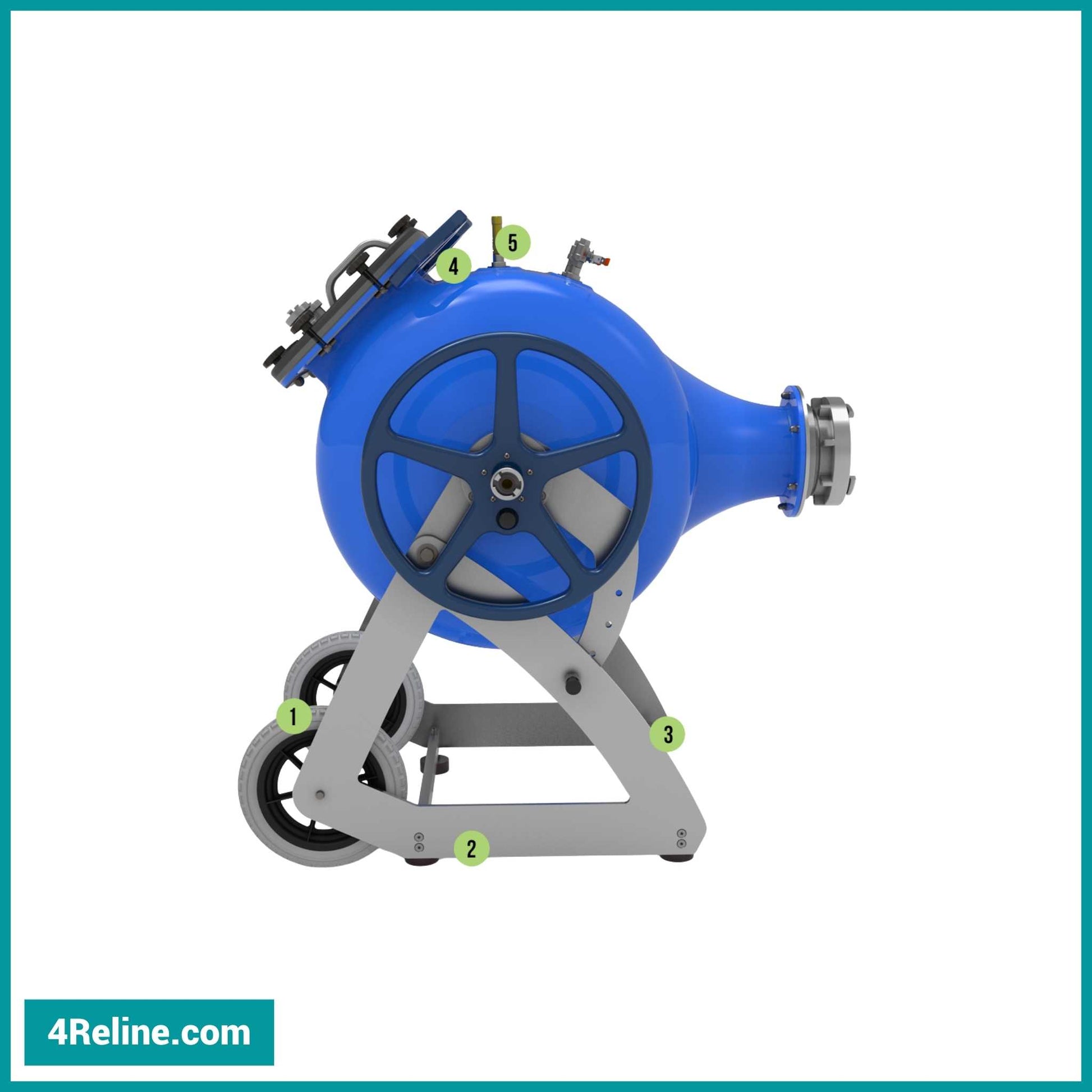

Recent design updates improve both handling and performance:
- New 30 cm rubber wheels provide smoother movement across uneven surfaces.
- Reinforced rubberized legs and square joint structure improve ground stability.
- Updated aluminum frame ensures strength and consistency across the Sanidrum product line.
- A simplified handle replaces the previous trolley system for easier maneuvering.
- Includes a 1.1 bar safety valve for improved safety during pressurized operations.
With a usable axle length of 430 mm, this drum suits smaller liner sizes while maintaining reliable pressure capacity and ease of transport.
Liner Capacity (Axle Length 430 mm):
| Liner DN | Parallel Windings | Max Length (Ø9 mm) | Max Length (Ø11 mm) |
|---|---|---|---|
| 100 mm (4″) | 2 | 66 m (216′) | 52 m (170′) |
| 125 mm (5″) | 2 | 66 m (216′) | 52 m (170′) |
| 150 mm (6″) | 1 | 33 m (108′) | 26 m (85′) |
| 200 mm (8″) | 1 | 33 m (108′) | 26 m (85′) |
| 250 mm (10″) | 1 | 33 m (108′) | 26 m (85′) |
