Inversion Drum Sanidrum 950
Inversion Drum Sanidrum 950
SKU:120740000
Couldn't load pickup availability

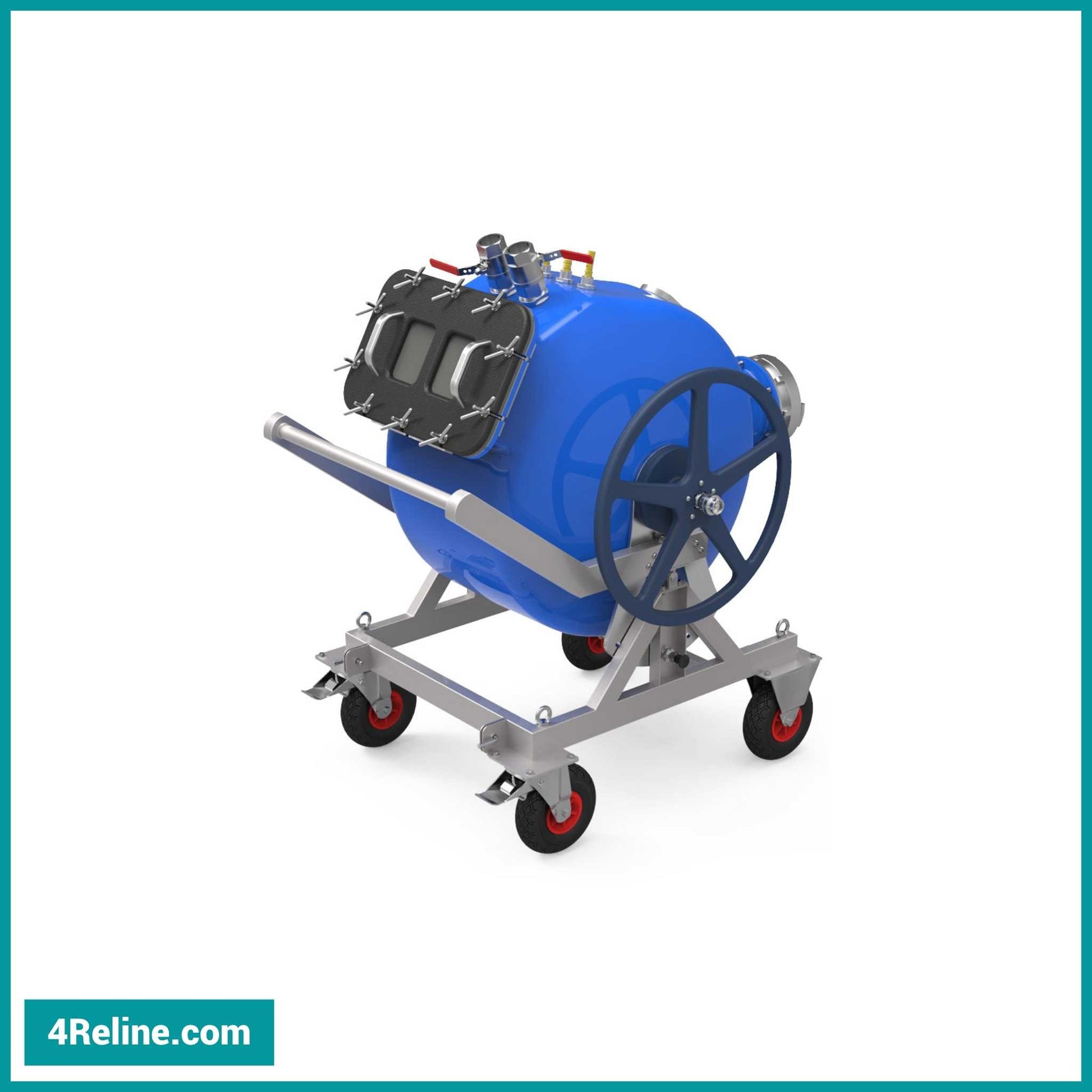

The Sanidrum 950 is a high-capacity inversion drum designed for CIPP relining with liners up to DN300. Despite its size, the drum remains manageable due to its 129 kg composite build, offering a strong yet lightweight solution for transporting and installing inversion liners.
Fitted with an 8″ Storz connection and a wheel drive system for smooth mobility, the drum includes a composite service window for easier access and operation. It is suited for longer liner installations thanks to its useful axle length of 550 mm and pressure-resistant design.
Liner Capacity (Axle Length 550 mm):
| Liner DN | Parallel Windings | Max Length (Ø9 mm) | Max Length (Ø11 mm) |
|---|---|---|---|
| 100 mm (4″) | 3 | 180 m (591′) | 144 m (472′) |
| 125 mm (5″) | 2 | 120 m (394′) | 96 m (315′) |
| 150 mm (6″) | 2 | 120 m (394′) | 96 m (315′) |
| 200 mm (8″) | 1 | 60 m (197′) | 48 m (157′) |
| 250 mm (10″) | 1 | 60 m (197′) | 48 m (157′) |
| 300 mm (12″) | 1 | 60 m (197′) | 48 m (157′) |
